Module Mechanical Drawing¶

Dimensions are in mm

../_images/mechanical.png

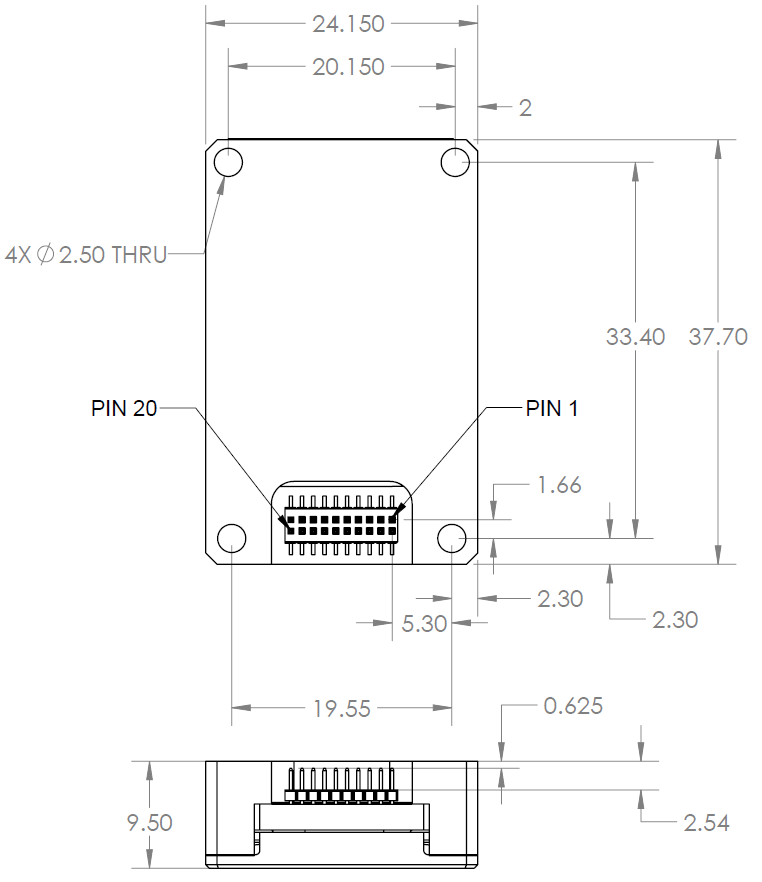

OpenIMU300ZI Module Mechanical Drawing
